LED Street Light

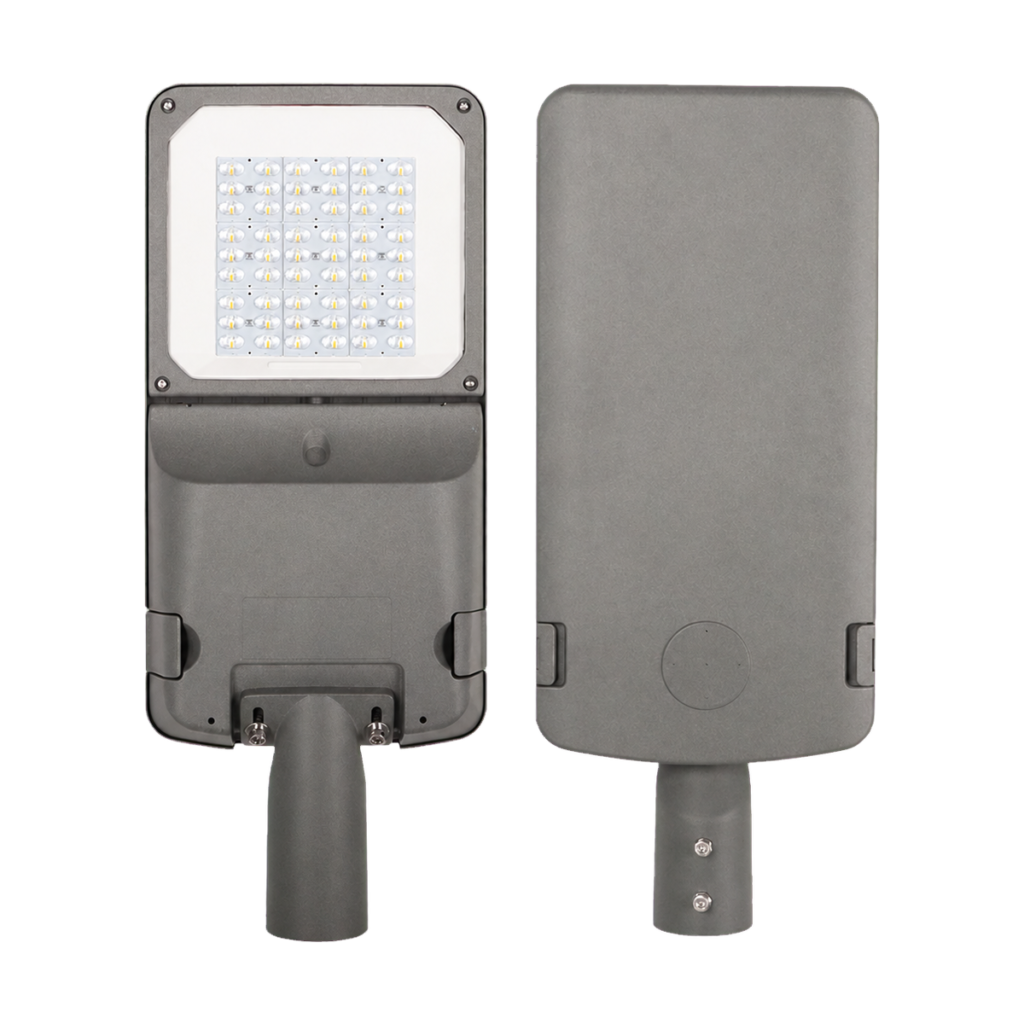

CX-100S LED Street Light
- Power range
- 30-240 W
- Smart-ready interface
- NEMA adaptive smart-ready interface
- Ingress protection
- IP66 / IK09
Product features
Efficient Outdoor Lighting with Smart-Ready Control
- CX100S series die-cast aluminum street light platform for urban and commercial roads.
- Power configurations from 30 W to 240 W across five housing sizes.
- Luminous efficacy from 130 to 160 lm/W with multiple road-lighting distributions.
- IP66 ingress protection, IK09 impact protection and 6 kV / 10 kV surge options.
- Adjustable mounting angle of +/- 15 degrees with horizontal or vertical installation.
- NEMA adaptive smart-ready configuration for compatible controllers and sensors.
- Mean Well, Inventronics or Philips driver options shown in the supplied specification.
- Optional 3030 or 5050 LED configurations and multiple Type I, II, III and V optics.
- Suitable for approximately 6-13 m installation heights, subject to the lighting design.
Technical data
Product Parameters
| Parameter | Specification |
|---|---|
| Model | CX-100S series |
| Product platform | Die-cast aluminum adjustable street light |
| Rated power | 30-240 W |
| Input voltage | AC 100-277 V |
| Frequency | 47-63 Hz (50/60 Hz nominal) |
| Power factor | >= 0.95 |
| THD | < 10% |
| Power efficiency | >= 0.90 |
| Luminous efficacy | 130-160 lm/W |
| CCT | 4000 K |
| CRI | > 70 |
| LED source | 3030; 5050 option |
| LED driver | Mean Well / Inventronics / Philips options |
| Smart-ready interface | NEMA adaptive controller / sensor interface |
| Ingress protection | IP66 |
| Impact protection | IK09 |
| Surge protection | 6 kV / 10 kV |
| Operating temperature | -20 C to 55 C |
| Mounting height | Approximately 6-13 m |
| Support pole diameter | 60 mm |
| Product dimensions | 576.5 x 209 x 89 to 810 x 315 x 89 mm |
| Rated service life | >= 50,000 h |
| Warranty | 5 years |

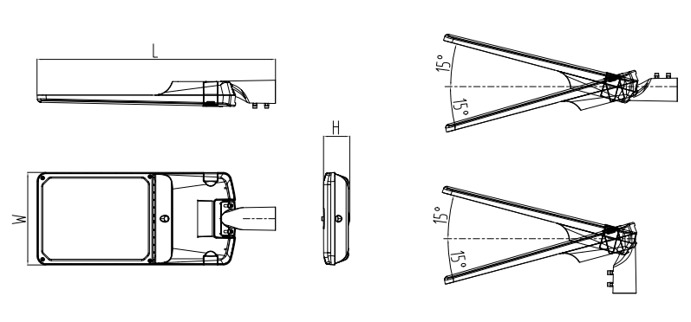

Dimensions and installation
Configuration and Installation
- Turn off and verify the absence of electrical power before installation.
- Confirm that the model, rated voltage and wattage match the approved design parameters.
- Check the supply wire specification and connect L and N through the waterproof connector.
- Insert the luminaire onto the mounting arm and tighten the handle screws.
- Check that the luminaire is level and adjust the installation angle where required.
- Tighten the handle screw to 16 Nm and verify that all fasteners are secure.
- Install or lock the compatible NEMA device only after confirming receptacle compatibility.
- Restore power and test illumination, smart control and safety functions.
| Configuration | Power / Function | Application | Dimensions / Remark |
|---|---|---|---|
| 100S-13 (M) | 30-40 W | 3-5 m mounting height | 576.5 x 209 x 89 mm |
| 100S-15 (M) | 50-60 W | 4-6 m mounting height | 593 x 263 x 89 mm |
| 100S-110 (M) | 80-120 W | 6-8 m mounting height | 644 x 263 x 89 mm |
| 100S-115 (M) | 150-200 W | 10-12 m mounting height | 707.5 x 314.5 x 89 mm |
| 100S-125 (M) | 200-240 W | 12-15 m mounting height | 810 x 315 x 89 mm |
| NEMA interface | Smart-ready control | Controller, photocell or supported sensor | Confirm receptacle and control configuration |
Safety: Installation and maintenance must be completed by qualified personnel with electrical power isolated. Follow the approved model-specific manual and applicable local electrical regulations.
