Overview
Cloxuan SLC12 series NEMA interface of street light controller is designed to fully control and management of street lights, enabling lights remote on/off/dimming and electrical data collection to improve energy consumption efficiency. It uses the NEMA standardized socket, which can fit universal LED luminaries integrated with NEMA receptacles. Hence, its plugging and playing properties make installation and repairs easy and friendly. Malfunction detection and self-diagnosis of the node help city managers or operators to reduce their workload as well as increase the safety of public lighting areas.
Product Features:
- NEMA socket connected (ANSI C136.41).
- Enables individual streetlight management by remote (Turn on/off/dimming).
- Synchronizing real-time working status with monitoring and management software.
- Measuring electrical parameters generated from the light: Voltage, Current, Power, and PF.
- Dimming interface: 0~10V / PWM / Dali.
- OTA firmware upgrade.
- Expandable with a variety of sensors: GPS / Lux / Tilt.
- Malfunction detection and alarm: light failure, disconnection, over/under voltage, over/under current, LED flickering.
- IP65
- Utility level metering
- Memory chip for data storage, the key data would not be lost in the event of power outage.
- Zigbee Mesh or LTE Cat.1/M communication.
- High accuracy RTC unit inside for protecting the lighting schedule runs normally in case of communication failure.
Bottom views of NEMA controller
NEMA controller interface instruction
| PIN ID | PIN Description | Function definition | Remark |
|---|---|---|---|
| N | power input neutral line | AC 220V | |
| Li | AC power input/output | power input live wire | AC 220V |
| Lo | AC power input/output | power output live wire | AC 220V |
| Ꝋ | Port | DALI- (0V) | Same as ③ |
| ⊕ | Port | DALI+ (10V) | Same as ④ |
| ③ | Port | DALI- (0V) | |
| ④ | Port | DALI+ (10V) |

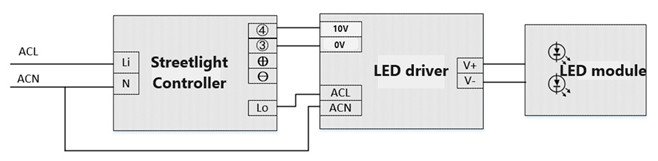

Wiring diagram between NEMA controller and LED street light
Installation on top of street light fixture with NEMA receptacle
